CMX1404

ULTRA STABLE AND COMPACT, SHAFT DRIVEN MOWER FOR LONG GRASS & SMALL SHRUBS

This is the entry level 4WD unit, the CMX1404 that again runs the complete F1 package including the mechanical drive train to the front of the mower. The sharing of the resources based around this platform has allowed us to deliver a true mechanical 4WD mower, complete with a shaft driven deck, with all the safety and comfort features. This now means that acreage owners can have the same feature set as the commercial contractor, with safety and comfort at a remarkable price point.

From $18,990 (inc GST)

WARRANTY
FINANCE OPTIONS
BOOK A DEMO
Red and black ride-on lawn mower with large tires, steering wheel, and a seat for the operator, featuring a yellow mower deck underneath.

  • This entry level all terrain mower will easily handle steep terrain and normal grass maintenance duties. It is capable of cutting saplings up to 36mm in diameter. It works beautifully as a quality maintenance machine for properties with demanding slopes.

    The CMX1404 Razorback has a shaft driven cutting platform and Hirosaki blades (based on the metallurgy of the famous Samurai sword), mean this mower will go places. With a single cylinder Honda engine, this is a fantastic opportunity to get a 4WD mower at an affordable price. It will handle steep slopes with ease and eat its way through scrub and vegetation like no other mower! Explore what you once thought was impossible and go places your old mower couldn’t!

    All the comfort features including:

    • Steering wheel can be telescoped in or out

    • Steering angle can be altered easily

    • Three position suspension seat

    • Seat can be moved forward & back

    • The back of the seat is adjustable The blade system uses the “Heartfelt Hirosaki” blades that are bolted to the mower.

    • 11.7HP Honda GX390 engine

    • Chain driven over head camshaft engine

    • High & low ratio gearbox

    • Limited slip diff lock selected from the dashboard

    • Shaft driven cutter deck train

    • Variable speed Hydrostatic transmission

    • Hand & foot control

    • Selectable 2WD&4WD

    • Park brake

    • Drum brake

    • Ultra low seat position creating more stability for hillside mowing

    • Easy and convenient height of cut control

    • Low centre of gravity for amazing stability on slopes and rough terrain

    • Easy and safe control layout so anyone can operate

    • Diff lock for ultimate traction

    • Compact mowing width for maneuverability and access

    • Comfortable ride and easy operation

    • Tight turning radius for mowing around trees

  • Engine GX 390

    Rated Net Output 8.7kW/3600

    Weight (fuel tank full) 365 Kg

    Gradeability 25 degrees

    Stability Angle 25 degrees

    Max Speed 13.4 km/h

    Fuel Tank 6.1 Litres

    Min turning radius 1900mm

    Cutting Width 975 mm

    Cutting Height 0 – 150 mm (Stepless)

    Drive Train Shaft Drive

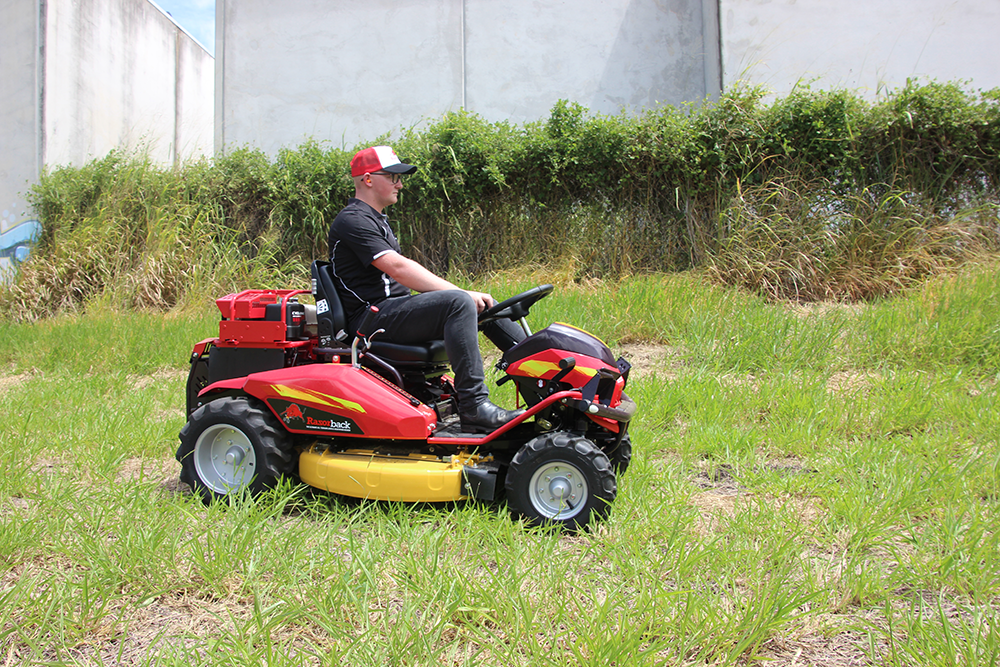

Person riding a small red and black riding lawn mower on a patch of grass near a white wall with greenery in the background.

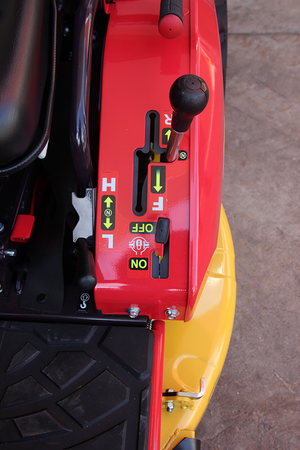

Control panel of a lawnmower or similar equipment with gear shift and ignition switches labeled 'F' and 'L', and with directional arrows and labels 'ON' and 'OFF'.

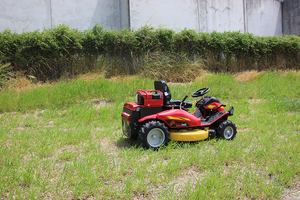

Red riding lawn mower on a grassy yard with bushes and a concrete wall in the background.

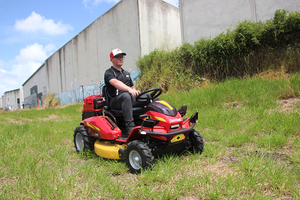

Person wearing black shirt, sunglasses, and a cap driving a red riding lawn mower on grass near a concrete wall with graffiti.
A close-up view of a red zero-turn lawn mower's control panel, showing a throttle lever, an hour meter reading 15 hours, and a black seat on the right.
