CMX2408
Take on tough acreage in comfort.
See it in action, explore the controls and take a closer look. Swipe the thumbnails for more.

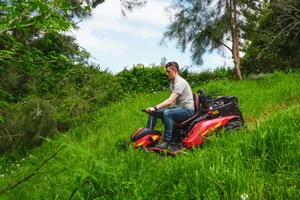

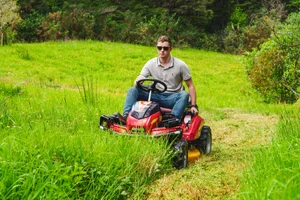

For heavy grass, brush and scrub, with Honda power and front suspension.
Base mower. Optional accessories priced separately.
Book a Demo Choose your accessoriesFree demonstration · Local dealer support
Honda power.
Comfort for rough ground.
Heavy vegetation capability with front suspension and an adjustable driving position for demanding days on your property.
Power through denser growth.
The Honda GX690 V-twin and shaft-driven deck tackle heavy grasses, brush and saplings up to 38mm, depending on vegetation and conditions.
Keep control of the ground.
Selectable 2WD/4WD, differential lock and high/low range help you adapt to the job.
Built for longer days.Hydrostatic drive with a charge pump, removable filter and 7-litre oil tank.
Front suspension for rough ground.
Front suspension and a three-position suspension seat help take the edge off uneven ground.

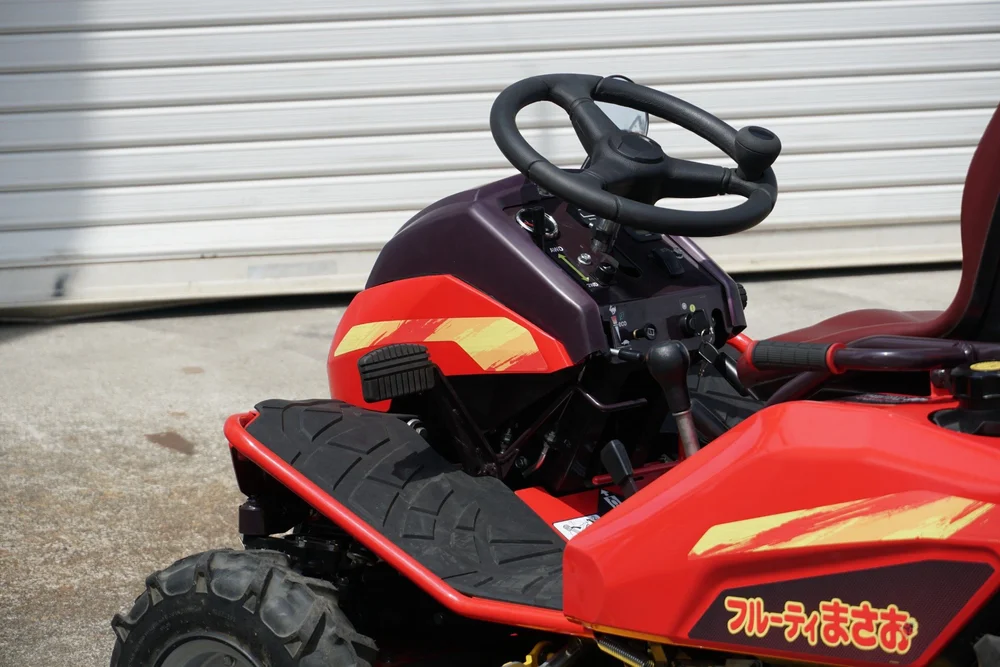

Make it fit you.Adjust the steering reach and angle, seat position and backrest to suit the operator.
Make it your Razorback.
Choose the accessories you’d like to discuss. Your dealer will confirm compatibility, installation and pricing.
Accessory photos show examples from across the Razorback range. Final fitment may differ.

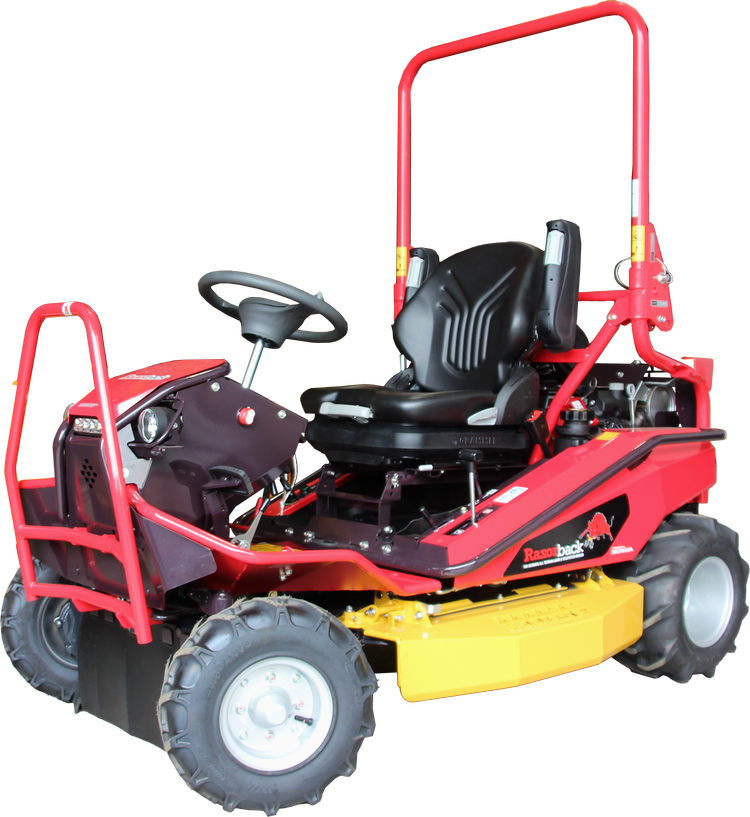

ROPS & seat belt
Rollover protection system with a seat belt. Discuss the right setup for your terrain.
Canopy mounts to ROPS.

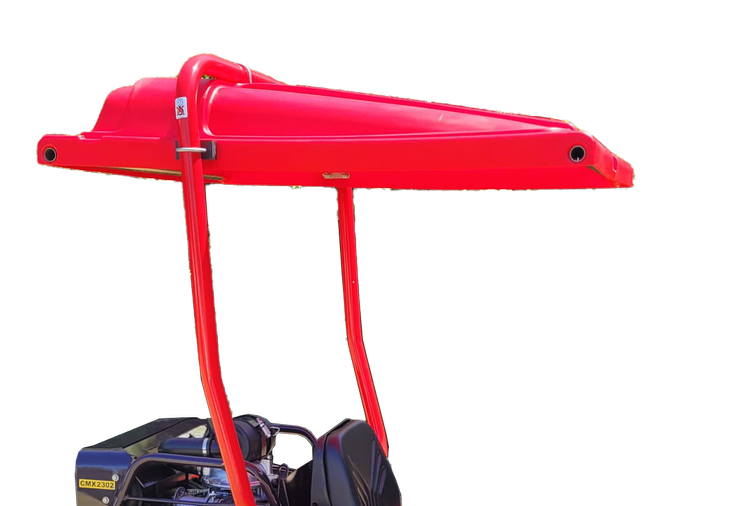

Sun canopy
Overhead shade to help make long days in the sun more comfortable.
Requires a fitted ROPS.

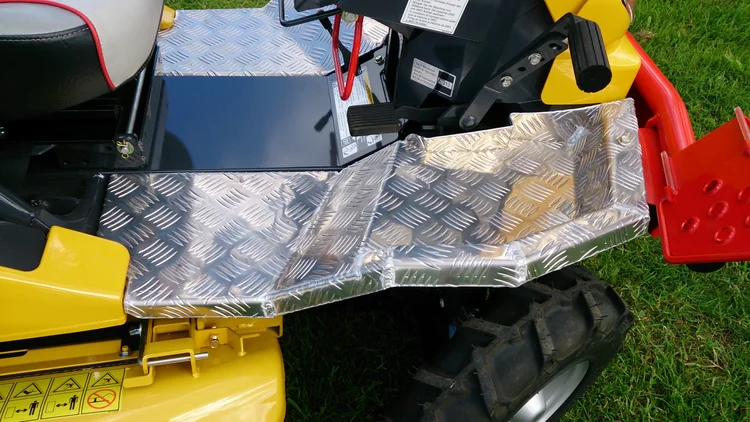

Aluminium footwells
Durable foot platforms that help shield your feet and lower legs from brush.
Confirm fitment with your dealer.

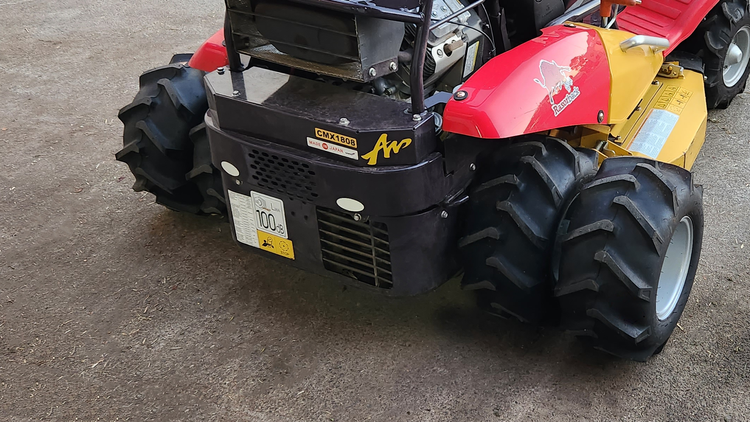

Dual rear wheels
An additional pair of rear wheels for a wider stance on challenging ground.
ROPS recommended. Check access width.

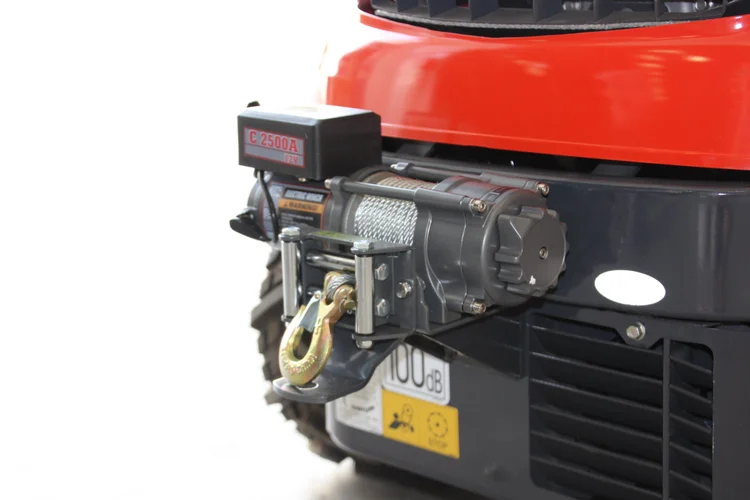

Recovery winch
A 12V electric winch with 15m cable for recovering the mower from boggy ground.
Self-recovery only; 60-second bursts.

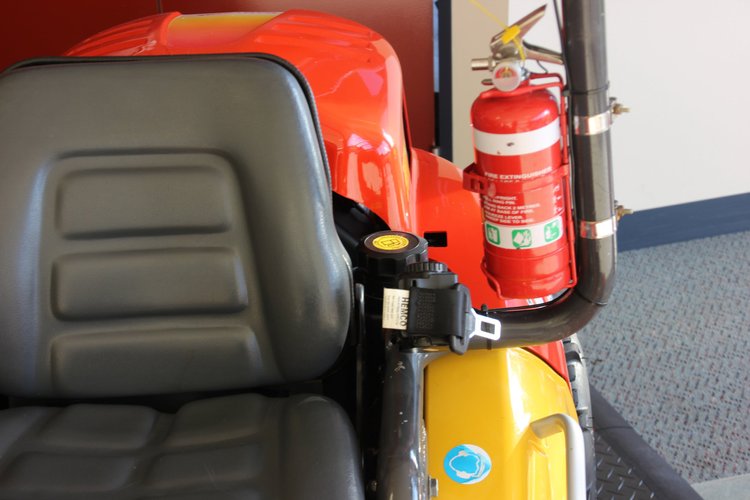

Fire extinguisher
An extinguisher with a secure mounting bracket, carried within reach on the machine.
Ask your dealer about placement.

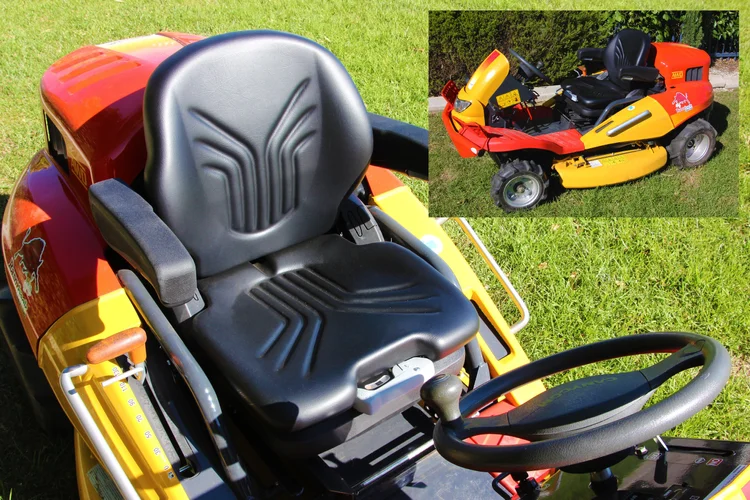

Suspension seat options
Discuss alternative suspension seating for your comfort and application.
A three-position suspension seat is already standard.

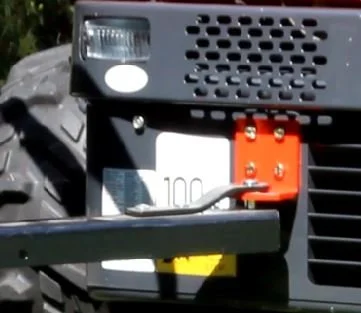

Tow hitch
A hitch for compatible garden trailers and other suitable towing tasks around your property.
Confirm towing limits and setup.Your accessory shortlist 0 selected
Select accessories above to build a list for your dealer.
A canopy requires a fitted ROPS. Ask your dealer to include the required mounting setup.
Accessories are quoted separately. Your selections are not sent automatically.CMX2408 Specifications
Published CMX2408 specifications. Confirm the current machine configuration with your dealer.
Engine & transmission
- Engine
- Honda GX690
- Rated net output
- 16.5 kW at 3,600 rpm
- Transmission
- Hydrostatic with charge pump
- Transmission oil system
- Removable filter, 7-litre tank
- Drive selection
- 2WD / 4WD
- Gear range
- High / low
- Fuel capacity
- 18 litres
Cutting & controls
- Cutting width
- 975 mm
- Cutting height
- 0–150 mm, stepless
- Cutter drive
- Shaft driven
- Blade changes
- Tool-less; opening deck sides
- Published sapling capacity
- Up to 38 mm*
- Speed control
- Hand and foot
- Front suspension
- Standard
- Operator seat
- Three-position suspension
*Species and conditions affect cutting performance.
Manoeuvrability & terrain
- Weight, fuel tank full
- 340 kg
- Maximum speed
- 14.2 km/h
- Minimum turning radius
- 1,800 mm
- Published gradeability
- 25°
- Published stability angle
- 25° left and right
Slope suitability depends on surface conditions, traction, obstacles and machine configuration.
