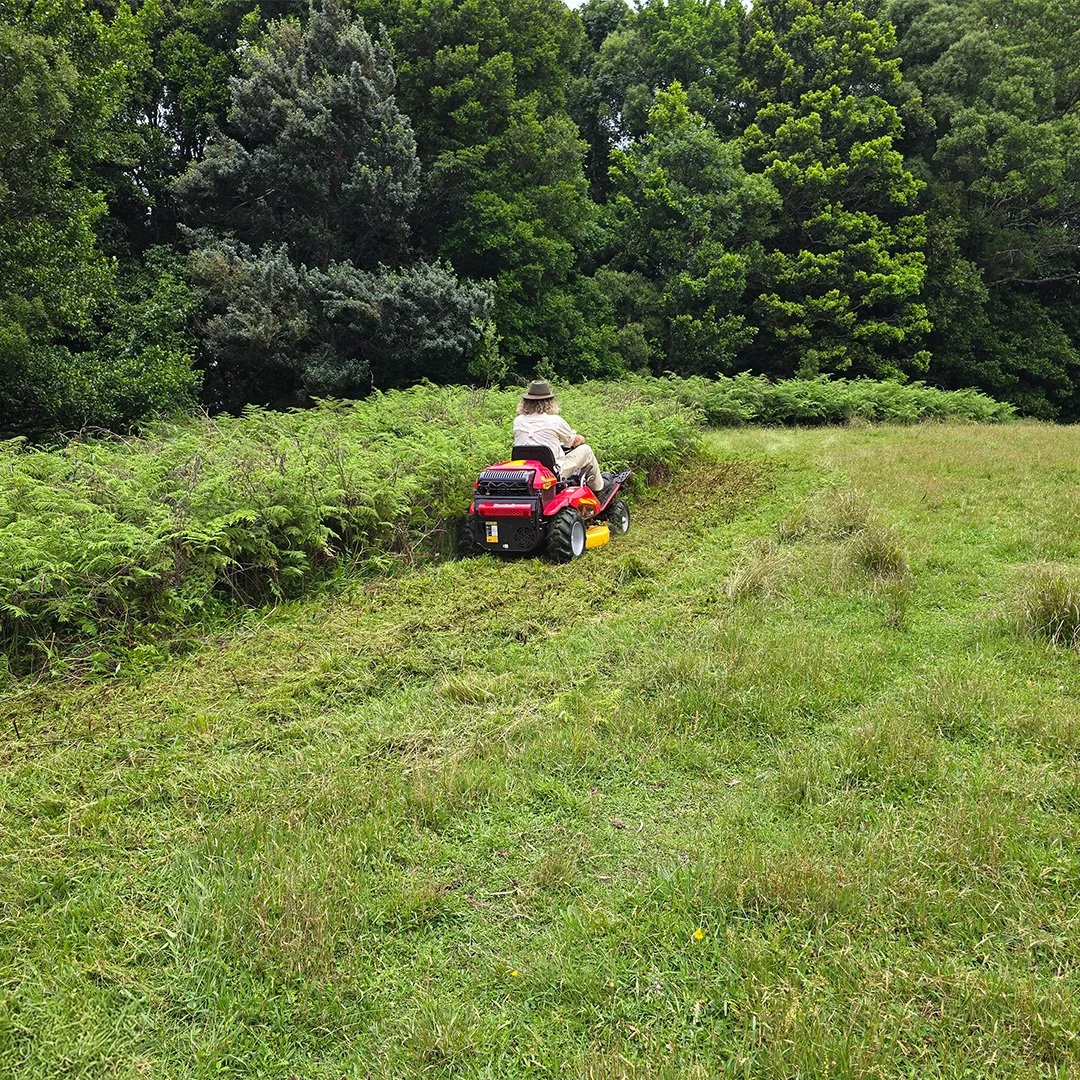

The CMX1810 Razorback 4WD has all the features you want on any All Terrain mower.

At the heart of the Razorback 4WD transmission is a mechanical drive shaft that runs from the rear diff to the front axle which drives the front planetary hubs, giving you the ultimate torque at the front of the mower – similar to a conventional off-road 4WD vehicle. This puts the power where you need it on steep slopes and assists with steering in extreme conditions. The positive diff-lock increases the traction in challenging climbing conditions. This unit must be seen to be believed.

THE ULTIMATE LAWN AND VEGETATION MOWER The twin cylinder mower gives it far more cutting power for handling very extreme, dense undergrowth. It easily manages to cut all of the clumping variety of grasses, most canes and saplings up to 36mm in diameter. And weeds! This is the ultimate machine for tackling weeds! Including most of the usual Australian pests like Tobacco Bush, Lantana, and small Camphor Laurel saplings. Most woody material is easily cut and destroyed as the power is more than adequate in most cutting situations.

All the comfort features including:

• Steering wheel can be telescoped in or out

• Steering angle can be altered easily

• Three position suspension seat

• Seat can be moved forward & back

• Rear seat angle can be adjusted

• Air-cooled 4-cycle V-twin Gasoline

• Chain driven over head camshaft engine

• High & low ratio gearbox

• Limited slip diff lock selected from the dashboard

• Specialist Diff lock for traction (works just as well climbing & descending)

• Shaft driven cutter deck train

• Variable speed Hydrostatic transmission

• A cast iron compact tractor front axle set with planetary hubs

• Foot control for forward & reverse movement

• Selectable 2WD & 4WD from the dashboard on the run

• Drum brakes and park brake

• Dual range for increased pulling and climbing power

• NO DECK BELT! Shaft driven cutting deck. Explore extreme terrain without the fear of breaking a belt / no loss of power from slipping on pullies

• Low centre of gravity for amazing stability on slopes and rough terrain

• Easy and safe control layout so anyone can operate

• Steering column adjustable for reach, length and angle

• Hour meter and grab handles

• Easy tool-less blade changing – unique swinging & opening blade guard

• Comfortable ride and easy operation

Engine B&S 3564

Rated Net Output 13.4kW/3600

Weight (fuel tank full) 370 Kg

Gradeability 25 degrees

Stability Angle 25 degrees

Max Speed 14.2 km/h

Fuel Tank 18 Litres

Min turning radius 1900mm

Cutting Width 975 mm

Cutting Height 0 – 150 mm (Stepless)

Drive Train Shaft Drive
